Keeping computers cool is essential for optimal performance. Two key materials used to transfer heat away from important components like CPUs and GPUs to heat sinks are liquid metal and thermal paste. Liquid metal is known for its exceptional heat-conducting ability, potentially keeping electronics cooler than traditional thermal pastes. However, it requires careful application to avoid damage.

Thermal paste, on the other hand, has been the standard choice due to its ease of use and its ability to fill microscopic imperfections on the surfaces of the CPU, GPU, and heatsink, leading to better heat transfer. While not as conductive as liquid metal, thermal paste still provides sufficient cooling and is more forgiving during application. For most users who don’t require extreme cooling, thermal paste remains a popular and reliable choice with a lower risk of causing damage during application.

Which is Best for Your Computer?

When you’re building or upgrading a computer, it’s important to make sure it stays cool. Excess heat can damage components and shorten the lifespan of your system. To transfer heat away from your CPU, you’ll need a thermal interface material (TIM). The most common choices are thermal paste and liquid metal.

What is thermal paste?

Thermal paste is the traditional choice. It’s a thick, viscous substance that’s made with a mix of silicone and thermally conductive materials like metal oxides. Thermal paste fills in microscopic gaps on the surfaces of the CPU’s integrated heat spreader (IHS) and the cooler’s base. This creates a smoother path for heat transfer.

Thermal paste is affordable, safe, and easy to use. It’s the best choice for most users.

What is liquid metal?

Liquid metal is a metal alloy that’s liquid at room temperature. Common liquid metal TIMs include alloys of gallium, indium, and tin. Because it’s a metal, liquid metal has extremely high thermal conductivity. This means it can transfer heat much faster than thermal paste, potentially resulting in significantly lower CPU temperatures.

There are a few downsides to liquid metal:

  • Conductive: Liquid metal is electrically conductive. If it leaks off of the CPU, it can short circuit your components.
  • Corrosive: Liquid metal can corrode certain metals, especially aluminum. Many coolers won’t be compatible.
  • Harder to apply: Because it’s a liquid, liquid metal is harder to apply correctly.

Comparing thermal paste and liquid metal

Here’s a table showing the advantages and disadvantages of each option:

FeatureThermal PasteLiquid Metal
Thermal ConductivityLowVery High
Ease of UseEasyDifficult
Risk of DamageLowHigh
CostLowHigh

Which TIM should you use?

For the vast majority of users, traditional thermal paste is the best way to go. It’s safe, easy, and provides good enough performance for most builds.

Liquid metal, on the other hand, is riskier to use but offers the possibility of much better thermal performance. If you’re an experienced builder and you need the lowest possible temperatures, then liquid metal could be an option for you. Just be sure to do your research and use it carefully.

Key Takeaways

  • Liquid metal showcases high thermal conductivity but requires careful application.
  • Thermal paste is user-friendly and well-suited for general cooling needs.
  • Selection between the two depends on performance requirements and user expertise.

Characteristics and Composition of Thermal Interface Materials

Thermal interface materials (TIMs) improve heat transfer between surfaces. High-quality TIMs are essential for electronic devices to manage heat effectively. This section breaks down the composition and characteristics of two common TIMs: thermal paste and liquid metal.

Thermal Paste: Composition and Types

Thermal paste, also known as thermal compound, is a viscous substance applied between the processor and the heatsink to enhance heat conduction. It fills in microscopic imperfections on the surfaces, improving heat transfer. The composition can be either silicon-based, ceramic-based, or carbon micro-particles.

  • Silicon-based pastes use a silicone oil carrier and are generally easy to apply.
  • Ceramic-based pastes don’t conduct electricity and often contain aluminum oxide or zinc oxide.
  • Carbon micro-particles like those found in Thermal Grizzly Kryonaut improve the paste’s performance by increasing its thermal conductivity.

Thermal pastes vary in their thermal conductivity and viscosity, making some better suited for high-performance applications than others.

Liquid Metal: Unique Properties and Components

Liquid metal TIMs stand out for their exceptional heat transfer capabilities. They are made from alloys of gallium, indium, and tin. These metals stay liquid at room temperature, which allows for excellent thermal conductivity and extreme efficiency in transferring heat.

Components of liquid metal TIMs include:

  • Gallium: Acts as the base fluid in the alloy due to its low melting point.
  • Indium and tin: Combined with gallium, they form an alloy with a melting point lower than each individual metal.

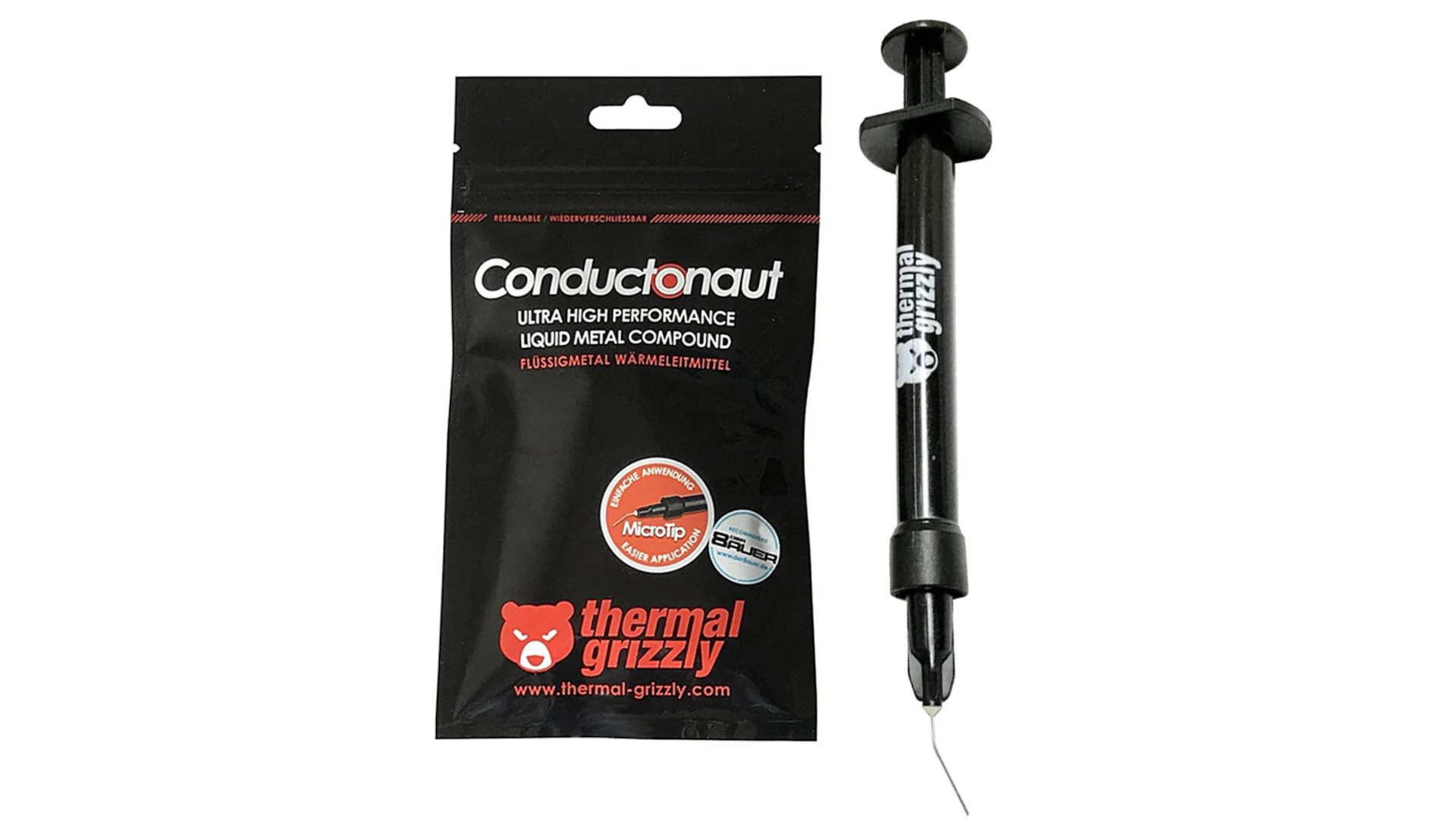

Liquid metal TIMs like Thermal Grizzly Conductonaut must be handled with care. They are electrically conductive and if applied incorrectly, can cause electrical shorts. Additionally, they can be corrosive to aluminum heatsinks, thus they’re often used with copper or nickel-plated surfaces.

Practical Applications and Considerations

When building or maintaining a computer, choosing the right thermal solution is key. An effective thermal interface material (TIM) is crucial for keeping the CPU temperature in check, ensuring peak performance without risking damage to PC components.

Installing and Managing Thermal Solutions

Correct installation is vital for both liquid metal and traditional thermal pastes. These substances improve heat transfer from the CPU to the cooler. Apply them with care. For liquid metal, use just a small amount to cover the processor’s integrated heat spreader (IHS). It’s more effective than traditional pastes but also demands precision due to its low viscosity. Tools like syringes can assist with application. Handle with care to avoid spillage.

Managing the thermal solution means regular checks. Over time, even the best thermal grease can dry out and lose effectiveness. If you overclock your CPU, monitor the temperatures regularly. Overheating can lead to performance issues or hardware failure.

Potential Risks and Performance Assessment

While liquid metal TIM offers lower thermal resistance and potentially cooler CPU temperatures, it’s not without risks. Its electrically conductive nature can cause short circuits if it spills onto other components. Users should be aware that aluminum heat sinks and liquid metal do not mix—liquid metal can only be used with copper heatsinks.

Performance assessment should consider the temperature difference before and after applying the TIM. Reviewers, enthusiasts, and experts often conduct tests to see how much the CPU temperature drops with the use of liquid metal compared to regular pastes. They also check for any performance difference during regular use and intense gaming or processing tasks. If done right, liquid metal can yield better cooling performance. However, incorrect use can lead to permanent damage to the CPU or GPU. Always seek expert assistance if uncertain.

Frequently Asked Questions

This section tackles some common queries about the usage of liquid metal and thermal paste for CPU cooling.

How does liquid metal thermal compound compare to regular thermal paste in terms of heat conductivity?

Liquid metal boasts a higher heat conductivity than thermal paste. This often results in more effective heat transfer from the CPU.

What are the potential risks of using liquid metal over traditional thermal paste on a laptop CPU?

Using liquid metal carries a risk of spillage that can damage the laptop’s components. It conducts electricity which means it can cause shorts if applied improperly.

In what scenarios is it not recommended to use liquid metal thermal compounds?

It’s unsuitable for use with aluminum heatsinks or when there’s a risk of consistent movement that could cause spills.

What are the main components of liquid metal thermal compounds?

These compounds commonly contain alloys of gallium, indium, and tin. They contribute to the high thermal conductivity that liquid metal provides.

Can liquid metal thermal compound be used on any type of CPU, and are there compatibility considerations?

Not every CPU is suitable for liquid metal use. It can’t be used with aluminum and certain precautions must be taken when applying it.

What is the typical lifespan of liquid metal thermal compounds compared to standard thermal pastes?

Liquid metal typically lasts longer than thermal paste. It does not dry out as quickly, maintaining efficiency over time.
