GFCI Outlet
GFCI Outlet

A GFCI outlet is a special electrical device designed to protect people from electric shock. These outlets detect ground faults and cut off the electrical current almost immediately to prevent harm. They are especially vital in wet areas like bathrooms and kitchens because the presence of water increases the risk of electric shock.

GFCI stands for Ground Fault Circuit Interrupter. When a small difference in the electrical current flow is detected, the outlet quickly de-energizes to stop the current flow. By doing so, it protects individuals from potentially dangerous electric shocks.

Installing GFCI outlets in your home can enhance safety, ensuring that you and your family are protected. They are straightforward to install and test, making them an essential addition to any household where electricity and water might come into contact.

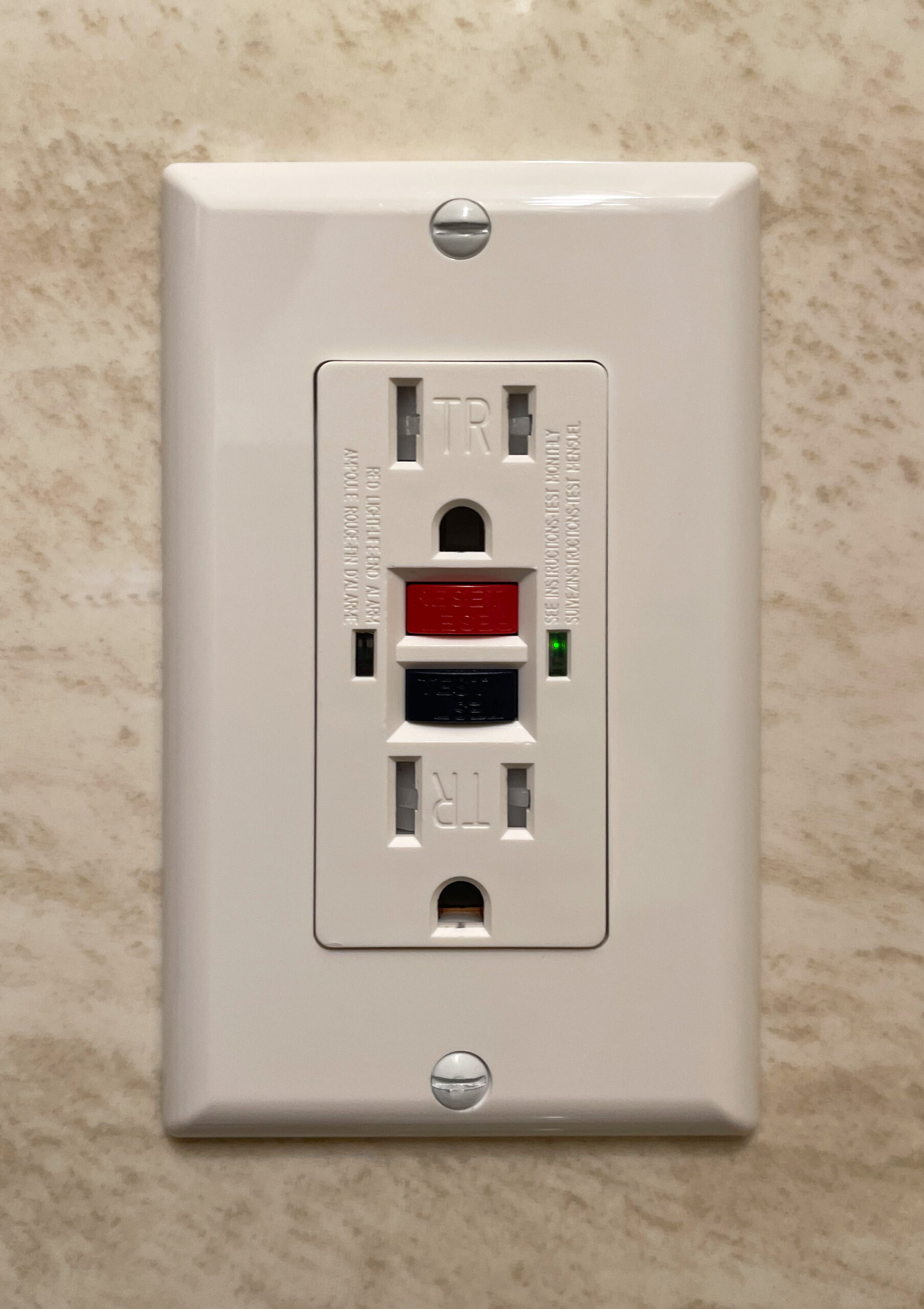

Image Credit: Ben Kurtovic, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

Shock Prevention: Understanding GFCI Outlets

GFCI: A Safety Essential

GFCI stands for Ground Fault Circuit Interrupter. This special outlet protects you from electrical shocks in wet or damp areas. It constantly monitors the flow of electricity and quickly shuts off the power if it senses any imbalance, preventing serious injury.

How GFCI Outlets Work

GFCIs work by comparing the current flowing in and out of an electrical circuit. If there’s a difference, even a small one, it means electricity is leaking somewhere it shouldn’t. This could be through water or a faulty appliance. The GFCI immediately shuts off the power to prevent a shock.

Where to Use GFCI Outlets

Building codes require GFCI outlets in areas where water is present or likely to be present. This includes bathrooms, kitchens, garages, outdoor areas, and near swimming pools or hot tubs. They are typically installed within six feet of a water source.

Identifying GFCI Outlets

GFCI outlets have two buttons on the front: “Test” and “Reset.” The “Test” button simulates a ground fault, tripping the outlet and cutting off power. The “Reset” button restores power after the outlet has been tripped.

Testing GFCI Outlets

It’s important to test your GFCI outlets monthly to ensure they’re working properly. Simply press the “Test” button, which should trip the outlet and cut off power to the connected devices. Then, press the “Reset” button to restore power.

GFCI vs. Standard Outlets

FeatureGFCI OutletStandard Outlet
Shock protectionYesNo
LocationWet/damp areasDry areas
Test/Reset buttonsYesNo
CostHigherLower

Key Takeways

  • GFCI outlets prevent electric shock by detecting ground faults.
  • They are required in wet areas like bathrooms and kitchens.
  • Easy to install and test for enhanced household safety.

Understanding GFCI Outlets

GFCI outlets, or Ground Fault Circuit Interrupters, are essential for electrical safety, preventing shocks and reducing fire risks. They monitor electrical current and cut off power when they detect an imbalance.

Fundamentals of GFCI Technology

GFCI outlets protect against electric shock by monitoring electrical current. If the current flowing through the hot and neutral wires differs by even a small amount (4 to 6 milliamps), the GFCI trips and cuts power. This quick response helps prevent electrocution. GFCIs are more sensitive than standard circuit breakers and provide better protection in areas near water. They are designed to fit in standard electrical boxes, although they are deeper and may require more space.

Benefits of Installing GFCI Outlets

Installing GFCI outlets improves home safety by reducing the risk of electrical shock and fire. They are especially important in kitchens, bathrooms, and outdoor areas where electrical devices are likely to contact water.

Key benefits include:

  • Immediate protection from ground faults
  • Enhanced safety in wet or damp locations
  • Compliance with electrical codes

GFCI outlets also offer peace of mind by continuously monitoring the electrical system for safety threats.

Identifying and Operating GFCI Devices

GFCI outlets are easy to identify by their “Test” and “Reset” buttons. The “Test” button allows users to check the functionality of the outlet. Pressing this button should cut power, turning off any connected devices. The “Reset” button restores power after a trip or test. Some models include indicator lights to show outlet status.

To operate a GFCI outlet safely:

  1. Test monthly to ensure proper function.
  2. Press the “Test” button to simulate a fault.
  3. Press the “Reset” button to restore power.

By understanding these operations, users can maintain the safety and efficiency of their electrical systems.

Frequently Asked Questions

Many people have questions about GFCI outlets. Here are answers to some common questions.

How does a Ground Fault Circuit Interrupter function?

A GFCI outlet protects against electrical shock. It monitors the current flowing through its circuit. If it detects a difference between the hot and neutral wires of 4 to 6 milliamps, it shuts off power almost instantly.

In which areas of my home are GFCI outlets mandatory?

GFCI outlets are required in areas with high moisture levels. These include kitchens, bathrooms, outdoor areas, garages, and basements. They are also necessary for any outlet within six feet of a sink.

What distinguishes a GFCI outlet from a conventional outlet?

A GFCI outlet has a built-in circuit breaker. It can detect electrical imbalances and shut off power to prevent shock. Regular outlets do not have this feature and won’t protect you in the same way against ground faults.

How can I identify a GFCI outlet in my house?

A GFCI outlet has “Test” and “Reset” buttons on its face. These buttons are usually different colors from the outlet. By pressing the “Test” button, you can check if the outlet is working properly.

Are GFCI outlets a necessity in all residential properties?

Not all areas in a home require GFCI outlets, but they are mandatory in specific locations like kitchens, bathrooms, and outdoor spaces. For homes not newly built, retrofitting these outlets in key areas enhances safety.

Why would a GFCI outlet frequently trip?

Frequent tripping can happen due to ground faults, moisture, or faulty wiring. Sometimes, using devices that draw a lot of power can also cause it to trip. Ensure that each appliance in use is functioning correctly.
